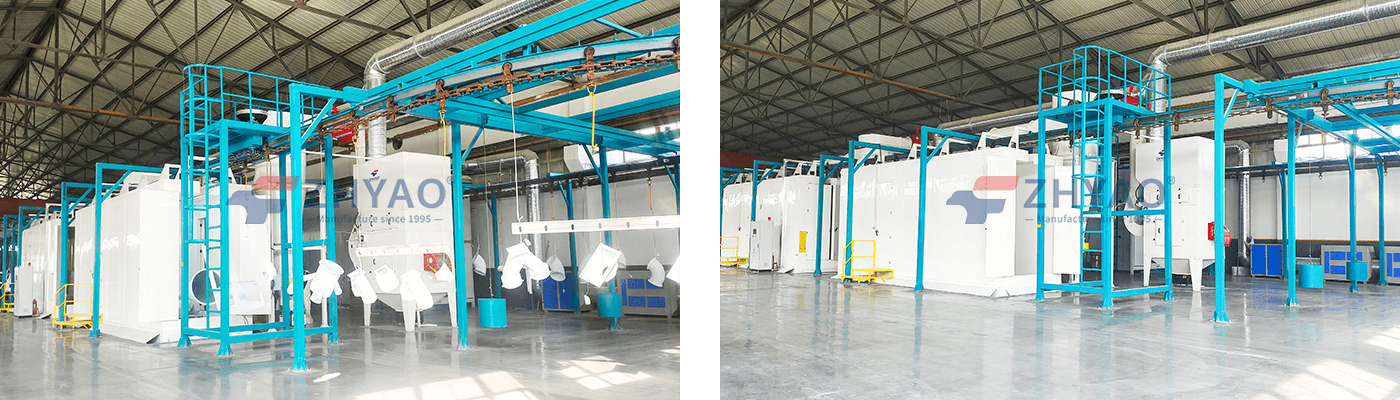

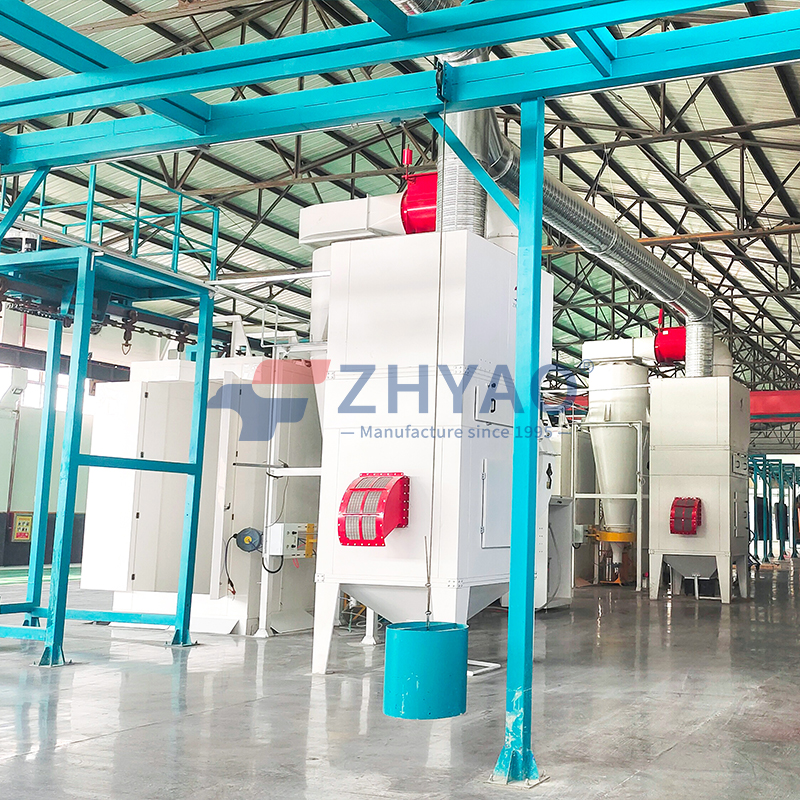

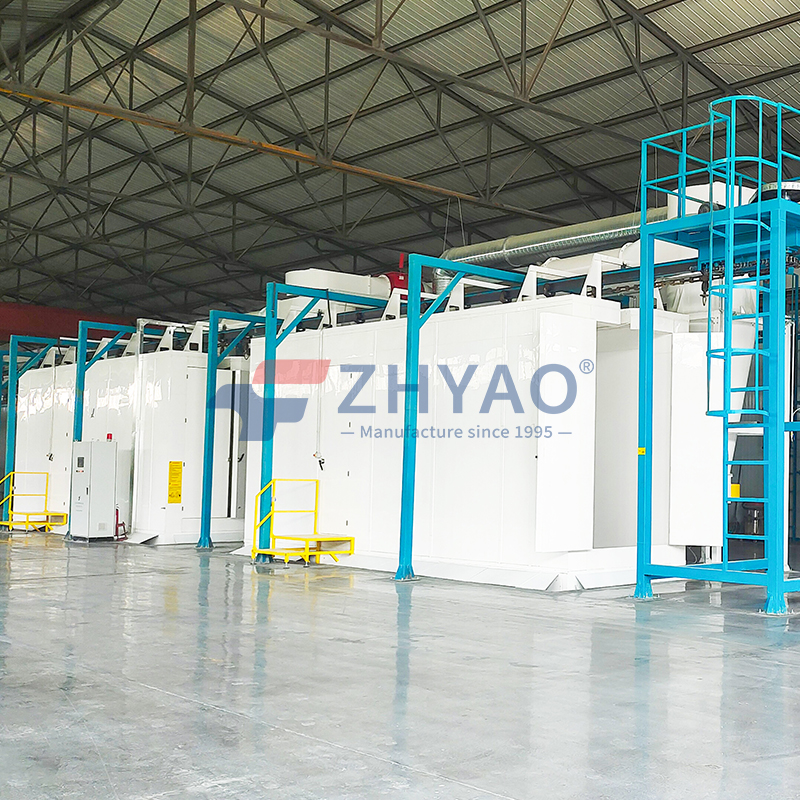

The powder coating booth is composed of a large cyclone, a two-stage recovery system, a powder room, electrostatic spray guns, a lift, and a powder supply system.
Product Description
The Powder Coating Booth is composed of a large cyclone, a two-stage recovery system, a powder room, electrostatic spray guns, a lift, and a powder supply system.
Powder spraying area: The spraying area is the core area of the spraying process, usually equipped with multiple spray guns, which can adjust the spraying angle and powder spraying volume according to the shape and size of the workpiece.
Airflow system: Good airflow design is crucial to the coating effect, common airflow designs include positive and negative pressure, negative pressure airflow system helps to keep the room clean and avoid dust spillage.
Recycling system: Used to capture and recycle unsprayed powder, through electrostatic dust removal, air filtration and other means to ensure the reuse of powder.
Exhaust system: It is used to remove harmful gases generated during the spraying process to ensure the safety and cleanliness of the workshop environment.
Automatic Spray Booths: use robots or automated spray systems for spraying, suitable for high volume production, improving spraying efficiency and consistency.
Manual booths: mainly rely on manual operation of the spray gun for spraying, suitable for small batches or complex shapes of workpieces.
Adaptable:
The automated spray gun system can adjust the spray angle and powder delivery volume according to the product shape to ensure even coverage.
High efficiency and energy saving:
Adopting high efficiency separating big cyclone, single separation rate can reach up to 95% - 98%, adopting high efficiency extractor fan, high efficiency, low energy consumption
Easy maintenance:
Adopt single-tube big cyclone two-stage recovery system, the big cyclone under the cone tube using hinged quick buckle connection, can be easily moved, easy to clean up
Highly automated:
Adopting PLC automatic control system and robot spraying system, which reduces manual operation, improves production efficiency and maintains the consistency of spraying quality.
Quick colour change system:
Adapts to spraying multiple colours, shortens the time of colour change and improves the flexibility of the production line.
① Rotary screen with dust removal: Vibratory screening unit easy to integrate into any system, good performance, easy maintenance, suitable for quick colour change.
② Screening machine with dust removal device: High-quality screening equipment for unipolar organic and enamelled powder coating lines with
③ automatic dust removal technology.
Ultrasonic sifter: High-frequency sifter that can be easily integrated into any system with high quality, high powder yield and simple colour change.
④ Ultrasonic Screening for Powder Feeding Centres: The superior screening performance of the ultrasonic screener is combined with the flexibility of a powder feeding centre and fast colour change performance.
ZHYAO has 29 years of experience in the research and development, production and manufacturing of automatic powder coating line, you are welcome to contact us for co-operation at any time.
Q：Are you a trader or a manufacturer?
A：We are both a manufacturer and an exporter.
Our own factory was established in 1995, and our export office was set up in 2018.
Q：If I am interested in your powder coating equipment, what information should I provide?
A：1. Material/size (maximum)/weight (maximum) of the workpieces.
2. What is your daily production capacity (1 day = 8 hours, 1 month = 30 days)?
3. What type of heating power do you prefer: electric, gas, diesel, or coal?
4. The dimensions of your factory (length, width, height)?
Q：How do you ensure the quality of the equipment?
A：1. We have numerous relevant certifications and have passed ISO 9001 Quality Management System Certification.
2. A technical review committee is in place to reasonably define and divide the stages of design, production, installation, and commissioning, while creating detailed schedules for each stage. This strengthens the quality assurance system and measures in the equipment manufacturing department.
3. We have dedicated quality inspectors to strictly control the processing quality of the products.
Q：How is the equipment installed after purchase?
A：1. We will provide installation instructions and installation videos.
2. Our engineers will provide on-site guidance, installation, and equipment operation.
3. After commissioning, we will offer comprehensive training and track the usage of the equipment by the customer.
Q：How does your company handle after-sales service?
A：1. We provide a list of consumables and assist customers in establishing a comprehensive equipment maintenance system.
2. After the equipment is delivered, our company will assign professionals to track the customer's equipment for 60 days.
3. If the equipment encounters any faults during use, we can remotely operate the equipment through a customer-authorized computer network to resolve all issues.
4. For any problems with the equipment, we guarantee to provide a solution within 12 hours.
1. The material of your workpieces.
2. The maximum dimensions of your workpieces.
3. The maximum weight of your workpieces.
4. The expected production capacity of your workpieces (1 day = 8 hours, 1 month = 30 days).
5. Your preferred heating power: electric, gas, diesel, or coal.
6. The dimensions of your factory (length, width, height).
We can provide an optimal design and precise quotation based on the data you provide. Please contact us, and we will respond promptly.
